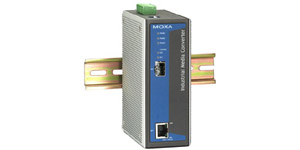

IMC-101G MOXA
IMC-101G
| Производитель: | MOXA |
| Интерфейсы (порты): |
|
| Наличие гальванической изоляции: | нет |
Номер по каталогу: 6793
Производитель: MOXA
Цена:
657.18 $ | 51 774,68 руб.
( с НДС )
Описание: Медиа-конвертер Ethernet 10/100/1000Base-TX в оптоволокно
51 774,68
RUB
- Техническое описание
- Документация
Спецификация IMC-101G
|
|
| Standards |
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
|
• Interface IMC-101G |
|
| RJ45 Ports | 10/100BaseT(X) |
| Fiber Port(s) | Optional 1000BaseSX/LX/LHX/ZX (LC connector) |
| LED Indicators | PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (TP and Fiber port) |
| DIP Switches | Port break alarm mask, Fault Pass-Through, Fiber AN/Force |
| Alarm Contact | One relay output with current carrying capacity of 1A @ 24 VDC |
| • Optical Fiber: | |
| Distance |
Multi mode: 1000BaseSX: 0 to 500 m, 850 nm (50/125 µm, 400 MHz*km) 0 to 275 m, 850 nm (62.5/125 m, 200 MHz*km) 1000BaseLX: 0 to 1100 m, 1310 nm (50/125 m, 800 MHz*km) 0 to 550 m, 1310 nm (62.5/125 m, 500 MHz*km) Single mode: 1000BaseLX: 0 to 10 km, 1310 nm (9/125 m, 3.5 PS/(nm*km)) 1000BaseLHX: 0 to 40 km, 1310 nm (9/125 m, 3.5 PS/(nm*km)) 1000BaseZX: 0 to 80 km, 1550 nm (9/125 m, 19 PS/(nm*km)) |
| • Power Requirements IMC-101G : | |
| Input Voltage | 24 VDC (12 to 45 VDC), redundant inputs |
| Input Current | (@ 24 V): 0.11A |
| Overload Current Protection | 1.1A |
| Connection | Removable terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics IMC-101G: | |
| Enclosure | IP30 protection, metal case |
| Weight | 630 g |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Installation | DIN-Rail or Wall Mounting (optional kit) |
| • Environmental Limits IMC-101G: | |
| Operating Temperature |
0 to 60°C (32 to 140°F), -40 to 75°C (-40 to 167°F) for T models |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Технические характеристики | |
|---|---|
| Интерфейсы (порты) |
|
| Наличие гальванической изоляции | нет |
